Ebike Battery

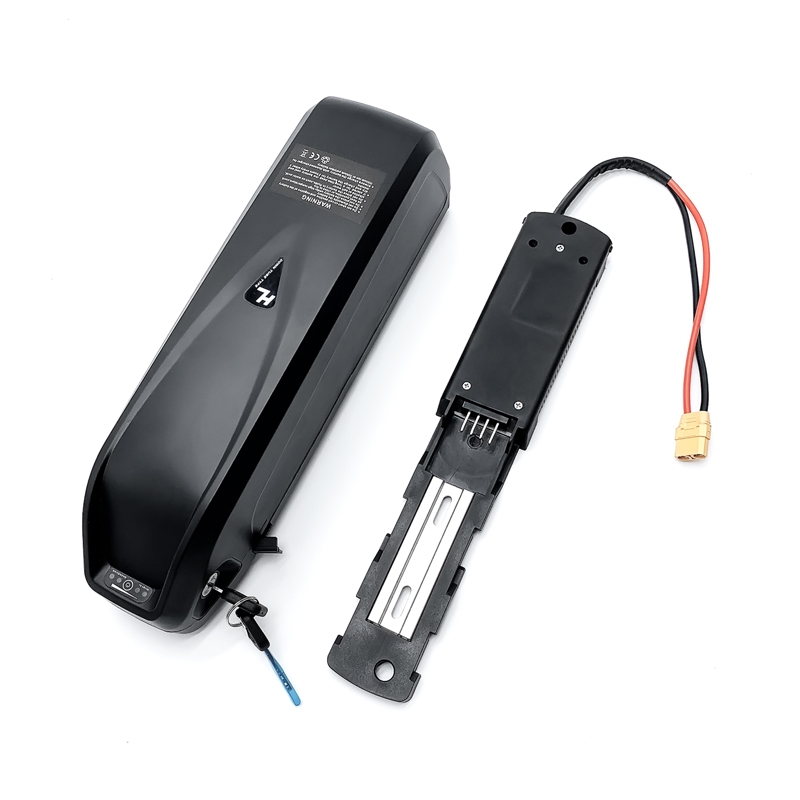

52V 14ah Hailong Ebike Battery with Charger for Electric Bike

52V 14Ah Specification:
Normal Voltage: 52V
Rated Capacity:14AH
Battery Cell:Built in Samsung 35E 3500mah. 56PCS
Array mode:14s4p
Battery size:367.2*90.1*111mm
Battery Weight:5KG
Max Constant Discharge Current:30A
Peak current:60A
Charge voltage:58.8V
Discharge cut off voltage:39.2V
Way of Charge:CC/CV
Cycle Life:1000 times
Charge Temperature:-15-65℃ Discharge Temperature:-15-65℃
Protection Function:Over charge, Over discharge,Over current, Short circuit,  Balance

Packing List:
1 * eBike Battery(Option)
1 * Charger( US/ EU/ AU / UK Option)
1 * Motor Battery Connection Cable (XT60 interface)

1 * User Manual


    52V 12.8Ah Specification:
    Normal Voltage: 52V
    Rated Capacity:12.8AH
    Battery Cell:Built in Samsung 32E 3200mah. 56PCS
    Array mode:14s4p
    Battery size:367.2*90.1*111mm
    Battery Weight:4KG
    Max Constant Discharge Current:30A
    Peak current:60A
    Charge voltage:58.8V

    Discharge cut off voltage:39.2V
    Way of Charge:CC/CV
    Cycle Life:1000 times
    Charge Temperature:-15-65℃
    Discharge Temperature:-15-65℃
    Protection Function:Over charge, Over discharge,Over current, Short circuit,  Balance
    48V 17.5Ah Specification:
    Normal Voltage: 48V
    Rated Capacity:17.5AH
    Battery Cell:Built in Samsung 35E 3500mah.65PCS
    Array mode:13s5p
    Battery size:367.2*90.1*111mm
    Battery Weight:4.4KG
    Max Constant Discharge Current:30A
    Peak current:60A
    Charge voltage:54.6V
    Discharge cut off voltage:36.4V
    Way of Charge:CC/CV
    Cycle Life:1000 times
    Charge Temperature:-15-65℃
    Discharge Temperature:-15-65℃
    Protection Function:Over charge, Over discharge,Over current, Short circuit,  Balance

    48V 13Ah Specification:
    Normal Voltage: 48V
    Rated Capacity:13AH
    Battery Cell:Built in Domestic 2500mah 65PCS
    Array mode:13s5p
    Battery size:367.2*90.1*111mm
    Battery Weight:4.1KG
    Max Constant Discharge Current:25A
    Peak current:60A
    Charge voltage:54.6V
    Discharge cut off voltage:36.4V
    Way of Charge:CC/CV
    Cycle Life:1000 times
    Charge Temperature:-15-65℃
    Discharge Temperature:-15-65℃
    Protection Function:Over charge, Over discharge,Over current, Short circuit,Balance

    48V 12Ah Specification:
    Normal Voltage: 48V
    Rated Capacity:12AH
    Battery Cell:Built in Samsung 29E 2900mah.52PCS
    Array mode:13s4p
    Battery size:367.2*90.1*111mm
    Battery Weight:4.1KG
    Max Constant Discharge Current:25A
    Peak current:60A
    Charge voltage:54.6V
    Discharge cut off voltage:36.4V
    Way of Charge:CC/CV
    Cycle Life:1000 times
    Charge Temperature:-15-65℃
    Discharge Temperature:-15-65℃
    Protection Function:Over charge, Over discharge,Over current, Short circuit,Balance

    36V 19.2Ah Specification:
    Nomal Volt: 36V
    Rated Capacity:19.2AH
    Battery Cell:Built in Panasonic 3200mah 60PCS
    Array mode:10s6p
    Battery size:367.2*90.1*111mm
    Battery Weight:4.1KG
    Max Constant Discharge Current:30A
    Peak current:60A
    Charge voltage:42V
    Discharge cut off voltage:28V
    Way of Charge:CC/CV
    Cycle Life:1000 tims
    Charge Temperature:-15-65℃
    Discharge Temperature:-15-65℃
    Protection Function:Over charge, Over discharge,Over current, Short circuit,  Balance

    36V 15.6Ah Specification:
    Nomal Volt: 36V
    Rated Capacity:15.6AH
    Battery Cell:Built in Domestic 2500mah 60PCS
    Array mode:10s6p
    Battery size:367.2*90.1*111mm
    Battery Weight:4.1KG
    Max Constant Discharge Current:25A
    Peak current:60A
    Charge voltage:42V
    Discharge cut off voltage:28V
    Way of Charge:CC/CV
    Cycle Life:1000 tims
    Charge Temperature:-15-65℃
    Discharge Temperature:-15-65℃
    Protection Function:Over charge, Over discharge,Over current, Short circuit,  Balance
